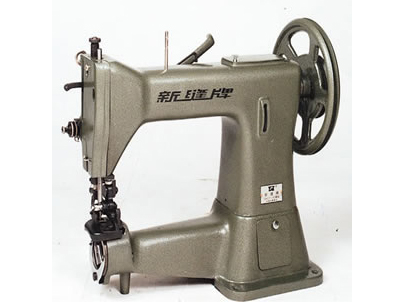

CHARATERISTICS

Single needle, needle rod thread poking, synchronized toothed belt driving, special large shuttle hook thread taking produces the single thread chain stitch and the successive sewing can be done without bottom line. It has the features of time and labor saving with high efficiency and quality. It is the ideal equipment for the sewing of cloth sloes in butch processing.

Uses

It is special for sewing of sloes of non-woven materials and products which requires sewing of single thread chain stitch etc.

Specifications

a. Max. Sewing Speed: 800/min.

b. Max. Pitch of Needles: 7mm

c. Max. Height of Pressure Foot 10 mm

d. Max. Sewing Thickness: 12mm

e. Type of Needle: 7 X 250

f. Power of Motor: 550W

g. Dimensions of Head: 736X270X590mm

h. Net Weight of Head: 36Kg

Order

Product name:	GJ2001 SINGLE THREAD SLOES SEWING MACHIN
